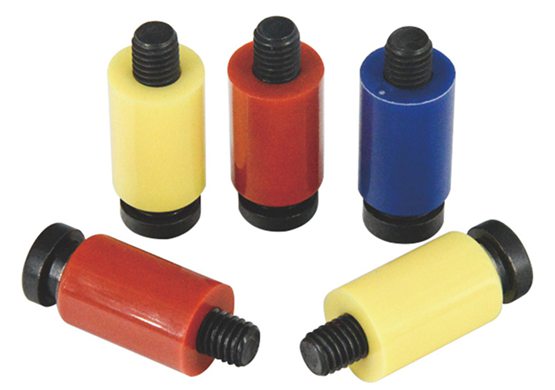

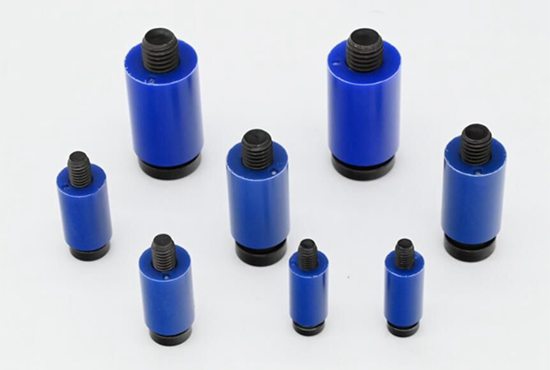

The friction force between the mold plate and Nylon Parting Lock can be adjusted by locking the conical bolt.
Special nylon, with good wear resistance and heat resistance.We have a variety of styles to choose from. Among them, This Nylon Parting Lock is the ordinary type, which is recommended for the mold below 80 ℃.

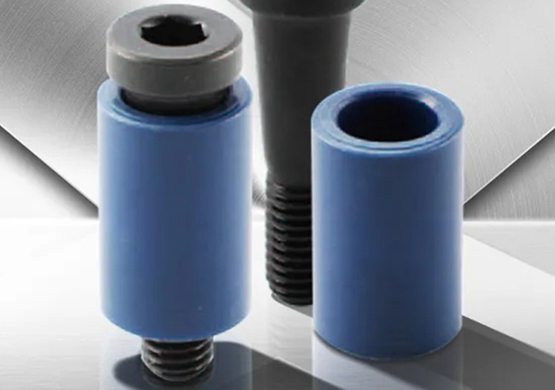

Especially add high temperature resistant materials. Different from ordinary Parting Lock, this Nylon Lock has strong high temperature resistance and is suitable for use in molds with more than 150 degrees.

Simple structure, easily interchangeable
Suitable for three-plate mould
Large tension, suitable for large mold
Made of high strength alloy steel, reliable quality

This Parting Lock is made of casting， with high precision.
Its strong undercuts are made of alloy steel with heat treatment and grinding.
Opposite sides with the Heat-resistant springs， have thousands of life span.

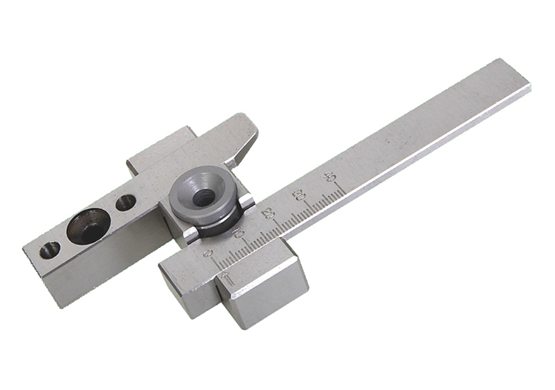

Similar to CUMSA’s GS.226616、GS.368619、GS.421024 Features：
Designed for two steps opening molds，The gradual scale allows selection of the first opening.
After selecting the required stroke， fix the scale lever with the spacer.

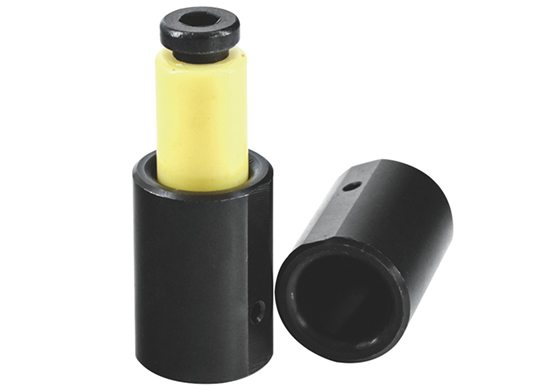

Parting Lock Bush is a bushing specially developed for PO. When using the bushing, the hole position polishing and R Angle machining are not required for installation.And can be removed from the parting side of the installation bolts, easy to maintain.

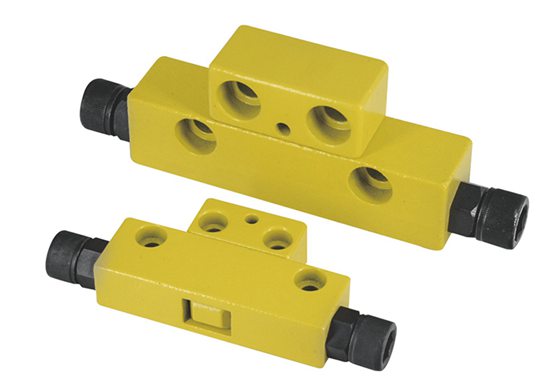

Simple structure,Suitable for three-plate mould
Large tension, suitable for large mold
Made of high strength alloy steel, yellow surface paint, beautiful and generous

This Parting Lock is MISUMI standard style.
The combination of disc spring, internal roller and clamping wheel can make the opening and closing of the mold have good balance.
The rotation of the roller can better prevent the occurrence of eccentric wear.
Locking sleeve is upper and lower symmetry, so if there is wear can be installed upside down again.

This Parting Lock is compact and small in size. There is no reaction force during mold opening and no clamping load. It is suitable for low-pressure molding molds. The action has nothing to do with the mold clamping sequence. If the runner push plate is closed before the parting surface, the locking block will retract by itself, so there is no need to worry about interference.

This Parting Lock mechanical interlock design, safe and reliable
The tail of the latch bar and the hook lock are treated by high frequency annealing，Easy to process mounting hole
Because the hook lock pin is longer, it is also suitable for ejector of hot runner.
Effective control of mold opening and closing sequence, no reaction force

This Parting Lock compared with other clamping devices, it is easier to install.
Compared with other types of mold lock, the speed of mold closing is not affected, and the forming cycle is shortened

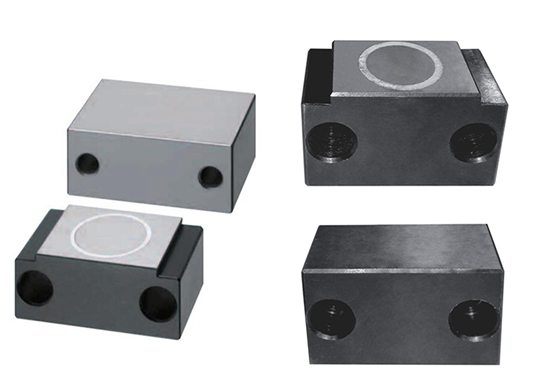

Install the adsorption surface parallel to the parting surface.
Finish the template surface to make the adsorption surface stick together tightly.

This  Parting Lock has reset mechanism and double ejection device function.
Internal installation avoids interferences with waterline connectors and externally mounted components. Can be used as early return unit， inter latch locks， Two-stage ejectors. Some important parts are made of SKD 61， Provide good lubricating while working longer life.

Shrapnel design, safe and reliable, accurate formation calculation
Large clamping force, suitable for large mold
External installation, easy to maintain

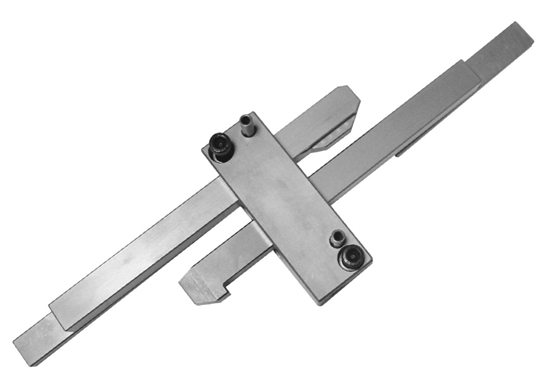

This Latch Lock Similar to HASCO’s Z171 , mechanical interlocking design， safe and reliable. Insert bar， end of pull rod adopt high frequency annealing treatment， so that easy to second time processing installed holes.  SZ171 allows control of the mold plate opening sequence on mold bases， but not control of mold plate closing sequence function.If you also need to control the mold opening, please select SZ170;

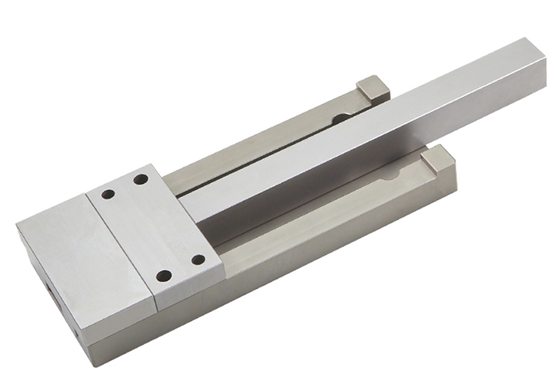

Similar to HASCO’s Z174 ,Due to double-sided locking system， safe and reliable.The key parts are made of SKD 11， with high wear proof，more durable. With the extended HV stroke latch bar， extensively usage. Big locking force.choose corresponding quantity and code according to mould size and load.
